Introduction to Lunar Imaging

Observing the Moon through a telescope or binoculars is a mesmerizing experience that leaves many speechless. The first time I glimpsed the Moon’s craters, valleys, and seas up close, I was utterly captivated. This fascination soon led me to lunar imaging, a rewarding introduction to astrophotography.

Here’s a comprehensive guide to help you capture stunning images of our natural satellite.

First Steps in Moon Photography

Lunar imaging is a great starting point for budding astrophotographers. It’s relatively easy, requires minimal equipment, and can be done from virtually anywhere, even in light-polluted urban areas. But first things first. Understanding a few key concepts about the Moon can enhance your imaging results.

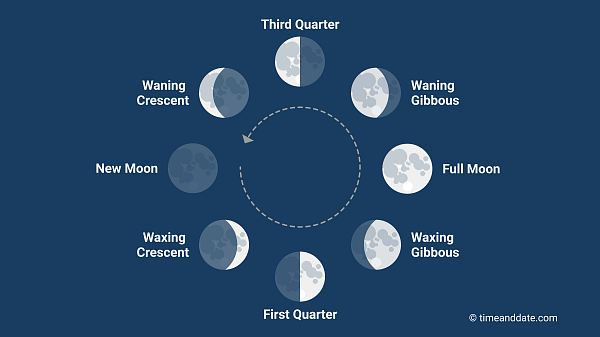

We only see one side of the Moon because of tidal locking, a phenomenon where the Moon’s rotation period matches its orbit around Earth. The visible portion of the Moon changes through its phases, depending on its position relative to the Sun and Earth. Although a Full Moon is visually striking, the best time to capture detailed images is during the crescent or gibbous phases. The shadows cast along the terminator (the line between the lit and unlit portions) enhance surface details.

Lunar imaging involves three main phases: capturing, stacking, and post-processing. Let’s delve into each step.

Phase 1: Capturing

The capturing phase is crucial because a good initial image is essential for successful post-processing. Here are some tips to get you started.

Focusing - Achieving perfect focus is paramount. Use a Bahtinov mask to focus on a bright star before moving to the Moon. This tool helps ensure your telescope is precisely focused, which is critical for sharp images.

Dealing with Atmospheric Turbulence - The Earth's atmosphere can cause image distortion. This effect, known as “seeing,” can blur your image. To mitigate this, be patient and ready to capture when the live view on your screen is clear. Using an infrared (IR) pass filter and a monochrome camera can help reduce atmospheric disturbances.

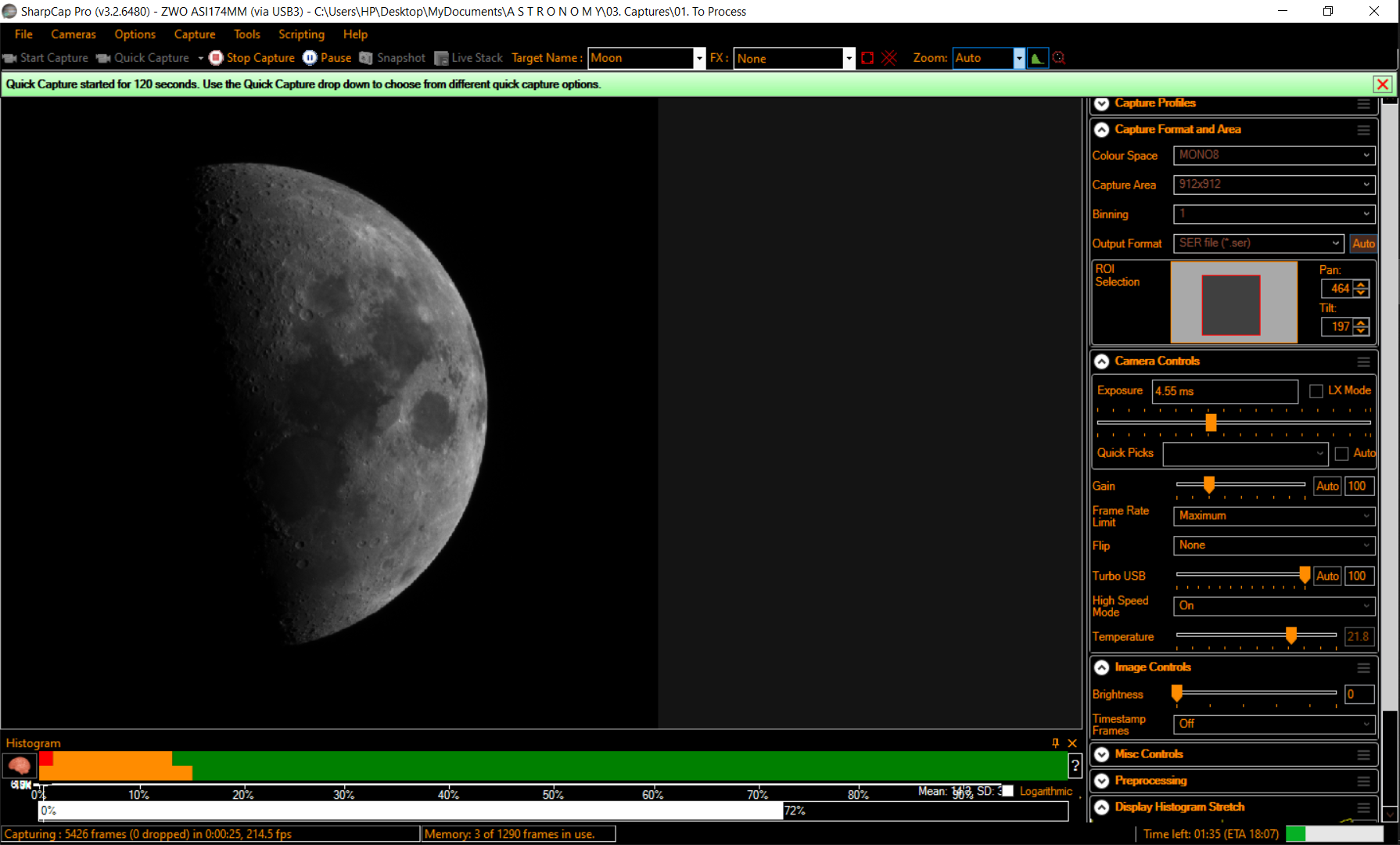

Software and Settings - Use software like SharpCap or FireCapture for video recording. Both are free and offer similar functionalities. Record your videos in *SER format, which provides better quality and is easier to work with than *AVI or other formats. Keep gain and exposure low to avoid overexposure, as you can always adjust brightness in post-processing but cannot fix an overexposed image.

Depending on the conditions and your equipment, aim to capture several minutes of video, resulting in 10,000 to 20,000 frames. This increases the likelihood of capturing clear frames for stacking.

Phase 2: Stacking

After capturing your videos, use stacking software like AutoStakkert! to combine the best frames into a single image.

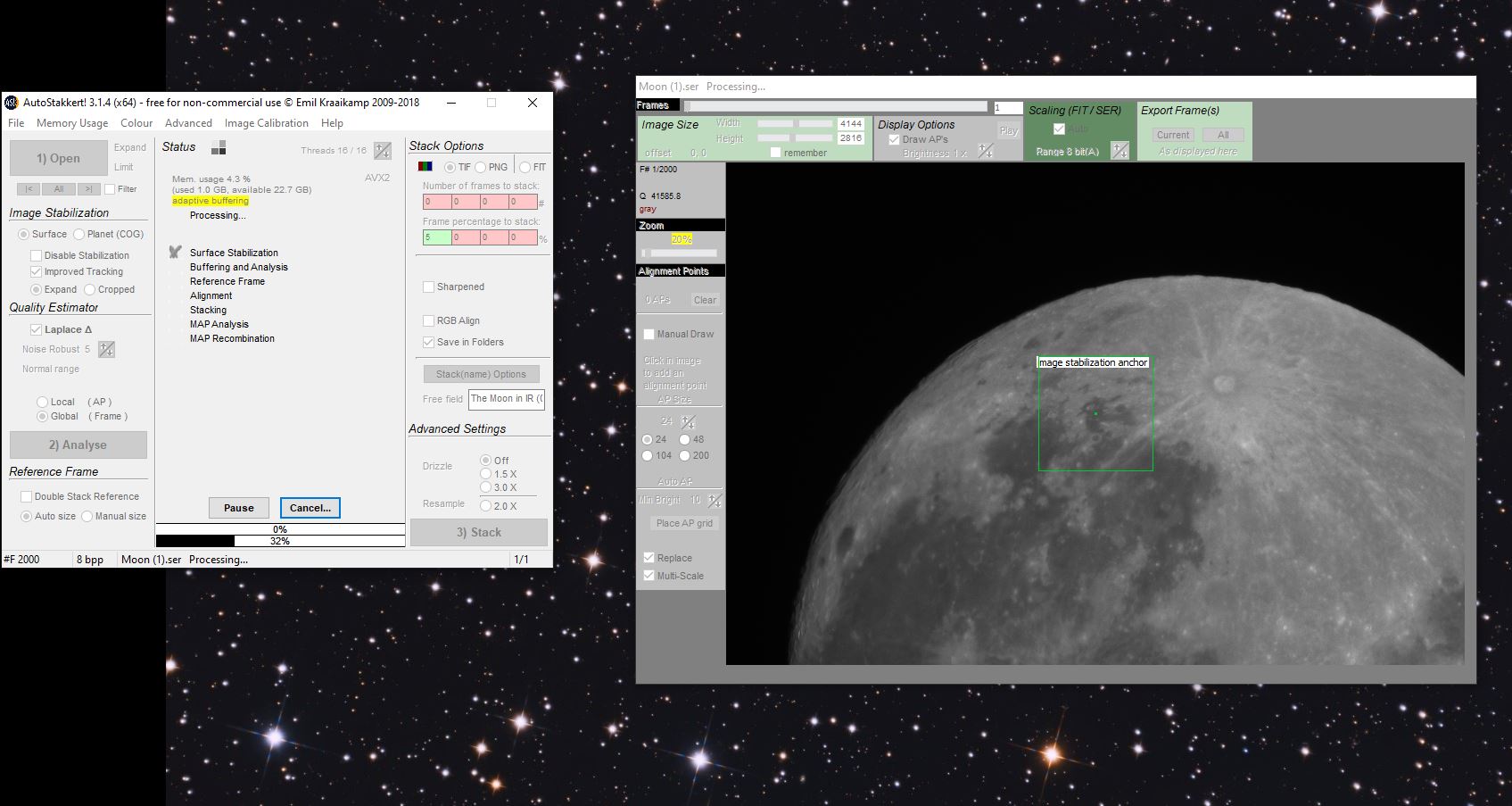

Loading and Analysing Videos - Load your videos into AutoStakkert!3, which analyses each frame and generates a quality graph. Based on this analysis, select the top 5% to 20% of frames for stacking.

Creating the Final Image - The software aligns and stacks the selected frames, producing a final image. This initial image may appear slightly blurred, but don’t worry; post-processing will enhance it significantly.

Handling Multiple Panels - If your equipment doesn’t capture the entire Moon in one frame, take multiple videos of different sections. Stack each video separately, then use Microsoft’s free Image Composite Editor (ICE) or Photoshop to stitch the images together seamlessly.

Phase 3: Post-Processing

Post-processing is where the magic happens, and your stacked image turns into a stunning photograph.

Initial Enhancements - Start with RegiStax, ImPPG or similar tools to sharpen the image and bring out as many details as possible. Be careful not to over-sharpen though, as this can introduce unwanted artefacts.

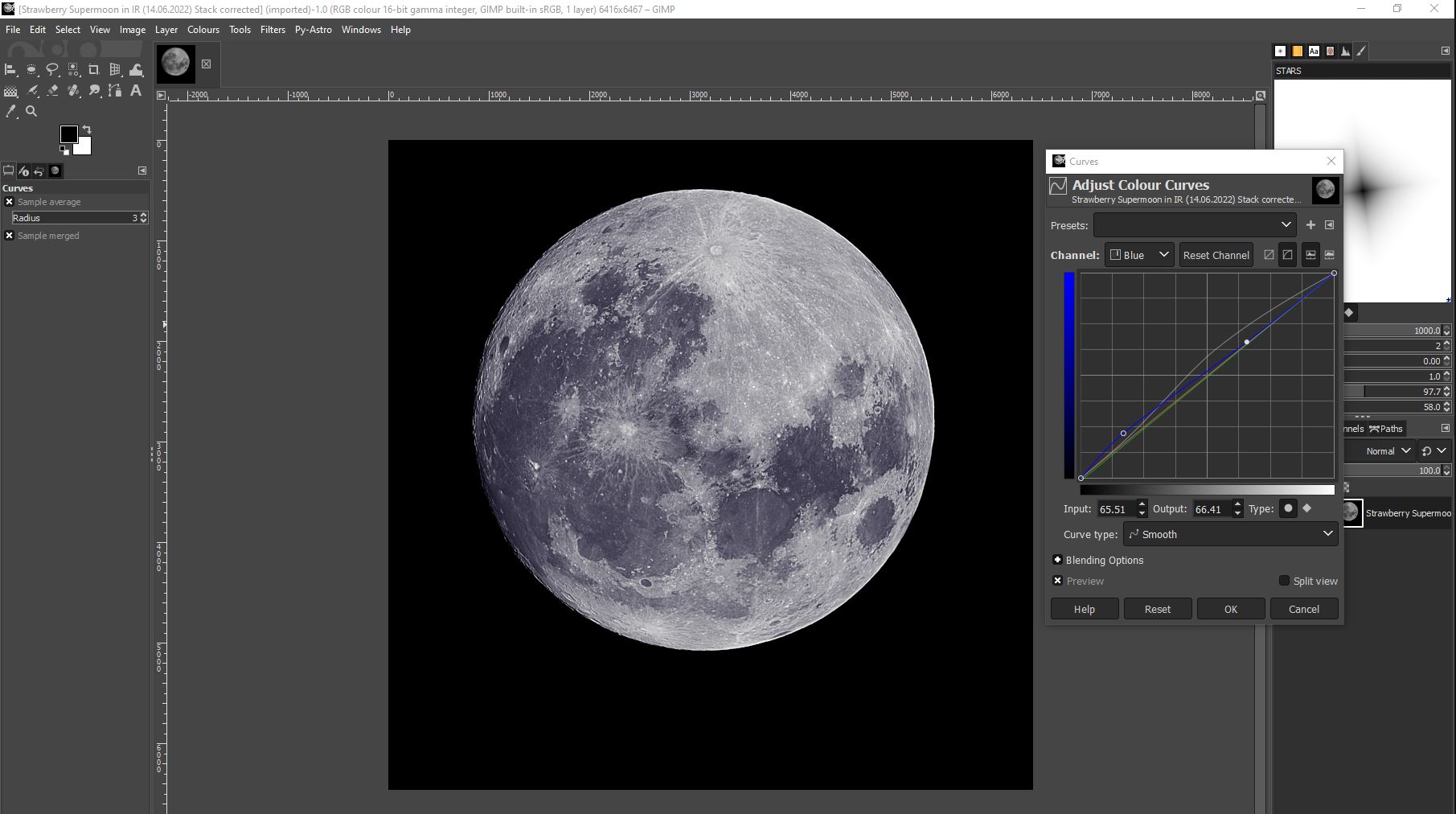

Further Adjustments - Load the sharpened image into Photoshop, GIMP or any editing software. Crop the image to remove any stacking artefacts and centre the Moon. Adjust exposure, contrast, shadows, mid-tones, and highlights to enhance the image further. If you used a colour camera, consider balancing and aligning the RGB channels to achieve a natural look.

Sharing Your Masterpiece - Your final image is now ready to be shared with friends, family, and the broader astrophotography community. Each attempt at lunar imaging will improve your skills, so keep experimenting with different techniques and settings and don't be discouraged by failure.

Lunar imaging is a gratifying entry point into astrophotography. It offers immediate results and a deep connection with our nearest celestial neighbour. With patience, practice, and the right techniques, you’ll be able to capture the Moon’s enchanting beauty and share it with the world.

Happy imaging!
