NGC 4236

NGC 4236, also known as Caldwell 3, is a large and low-surface-brightness barred spiral galaxy residing in the northern constellation of Draco. Despite its relative proximity, around 11.7 million light-years, it is often overlooked due to its faintness and large apparent size. However, NGC 4236 offers a wealth of scientific insight, from its star-forming regions and young clusters to its extended neutral hydrogen disk and represents an ideal candidate for studying late-type spiral galaxies in low-density environments.

NGC 4236: A Quiet Giant in the M81 Group

NGC 4236 lies on the outskirts of the M81 Group, which also includes prominent members such as M81, M82, and NGC 2403. According to Karachentsev et al. (2002), NGC 4236 is among the most isolated members of the group, positioned nearly 1 Mpc from M81 itself.

Its isolation may explain the lack of strong tidal features and its relatively undisturbed interstellar medium. Studying such members is crucial to understanding how environment affects galaxy evolution.

First Discovery

NGC 4236 was discovered by William Herschel on April 6, 1793, during one of his many deep-sky surveys conducted with his self-built telescopes. At the time, it was noted as a faint, extended object with a weak central condensation — characteristics that made it less prominent than many of the brighter Messier objects. Later observations by astronomers such as John Herschel and in the 20th century by professional observatories helped refine its classification as a barred spiral galaxy.

Its inclusion in the Caldwell catalog as Caldwell 3, created by Sir Patrick Moore for amateur astronomers, brought new attention to this subtle but important galaxy. With photographic plates and more advanced CCD imaging, the full extent of its low surface brightness disk and gas content became apparent, establishing it as an ideal case study for studying quiescent spiral galaxies in sparse environments.

Structural Properties and Stellar Content

Classified as SB(s)dm, NGC 4236 is a Magellanic-type barred spiral galaxy with loosely wound arms. It spans approximately 22 x 7 arcminutes in apparent size, translating to nearly 75,000 light-years across — comparable to the Milky Way.

Despite its well-defined bar and disk structure, the galaxy lacks strong spiral arm features, especially in the H I gas distribution. Its diffuse appearance is one reason it is not prominent in amateur or wide-field galaxy surveys.

Although no comprehensive abundance gradient has been mapped, typical SBdm galaxies exhibit relatively low metallicities due to less efficient past star formation. GALEX ultraviolet data indicates patches of ongoing star formation, though at a moderate level compared to starburst galaxies.

Rotational velocity measurements suggest a relatively slow rotation (~70 km/s), implying a dark matter-dominated system. NGC 4236's rotation curve, measured via H I line observations, stays flat at large radii — classic evidence for a massive dark halo.

Neutral Hydrogen and Interstellar Medium

Aperture synthesis observations by Shostak & Rogstad (1973) revealed that NGC 4236 contains an extended H I disk that spans more than 20 arcminutes — wider than its optical extent. The galaxy hosts an impressive mass of neutral hydrogen, estimated at 3.1 × 10⁹ solar masses. This vast reservoir fuels ongoing star formation and reflects a stable, nearly face-on rotating disk.

Despite its low-density stellar structure, the hydrogen distribution is fairly symmetric, suggesting a quiescent evolutionary history with limited recent interactions.

A photometric study by Kurtev et al. (2001) identified 28 probable star cluster candidates, several of which are quite young — around 5 to 8 million years — and associated with ionised gas regions. These clusters span across a wide age range, up to several hundred million years.

Using colour-magnitude diagrams, visual inspections, and PSF subtraction techniques, the authors demonstrated that NGC 4236, though less structured than spiral galaxies like M33 or M51, remains actively forming stars in scattered regions along its disk and bar.

The outer halo of NGC 4236 shows faint stellar features, potentially remnants of tidal interactions or accretion events. Martínez-Delgado et al. (2012) noted such structures around many nearby spirals, including NGC 4236, using deep wide-field imaging.

These structures — extremely low in surface brightness — may be the fossil record of minor mergers or slow accretion of dwarf satellites. Their detection underscores the importance of ultra-deep imaging in understanding galaxy outskirts.

Dwarf Galaxy Candidates and Satellites

In a recent study by Makarov et al. 2020, 12 new dwarf galaxy candidates were found in the Local Volume, with at least one suspected companion associated with NGC 4236. These faint galaxies have low surface brightness (μ_B ~ 25–27.5 mag arcsec²) and may be gravitationally bound to their host.

Exploring these satellites provides insight into the hierarchical formation of galaxies, especially in low-density regions. Spectroscopic follow-ups are needed to confirm physical associations and measure radial velocities.

Multi-Wavelength Observations

Observations of NGC 4236 across different wavelengths have enriched our understanding of its stellar and interstellar composition. Infrared data from missions such as Spitzer and WISE have revealed warm dust and active star-forming regions concentrated primarily along the central bar. These areas coincide with ultraviolet emissions captured by GALEX, indicating the presence of young stellar populations, albeit distributed in small, irregular clumps along the disk and arms. Optical imaging from surveys like the Sloan Digital Sky Survey (SDSS) and partial coverage from the Hubble Space Telescope have resolved individual stars and stellar clusters, aiding in age estimation and population studies.

In the radio domain, 21-cm observations of neutral hydrogen clearly outline an extended gaseous disk, far larger than what is seen in visible light, emphasizing the galaxy’s potential for sustained star formation. However, in the high-energy regime, X-ray observations have not revealed significant activity, suggesting that NGC 4236 lacks a prominent active galactic nucleus or substantial hot gas halo, consistent with its classification as a relatively quiescent, late-type spiral.

Future Perspectives

NGC 4236 presents a valuable opportunity for upcoming observational campaigns. Integral field spectroscopy could map its stellar population gradients and uncover subtle variations in metallicity across the disk. High-resolution radio imaging, especially with instruments like the upcoming Square Kilometre Array (SKA), would allow astronomers to investigate the dynamics of the neutral hydrogen component in greater detail, possibly identifying inflows, outflows, or hidden warps in the disk.

The James Webb Space Telescope (JWST) offers the potential to peer into obscured star-forming regions within the bar and spiral arms, resolving embedded young clusters and probing the galaxy’s infrared structure. Furthermore, deep, wide-field optical surveys may reveal faint stellar streams or ultra-low surface brightness companions, shedding light on past accretion events. In short, while NGC 4236 may seem modest compared to more luminous spirals, its scientific potential is substantial, especially in the context of understanding isolated galactic evolution in the Local Volume.

Observing NGC 4236

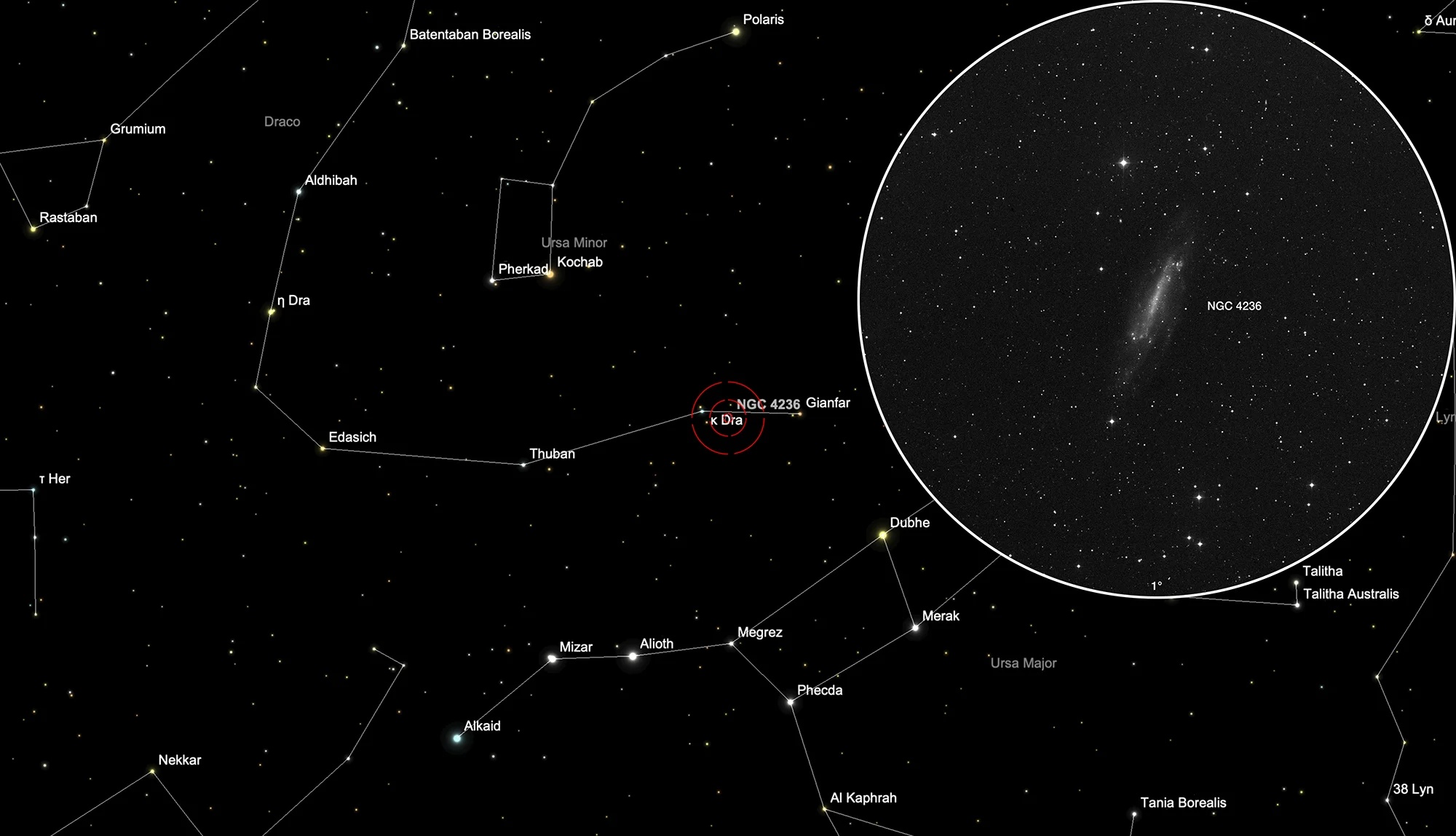

The northern constellation Draco is accessible to observers in mid to high northern latitudes throughout most of the year. It can be located roughly halfway between the stars Alkaid (Eta Ursae Majoris) at the end of the Big Dipper's handle, and Rastaban (Beta Draconis) in Draco. The galaxy sits at Right Ascension 12h 16m and Declination +69° 27′.

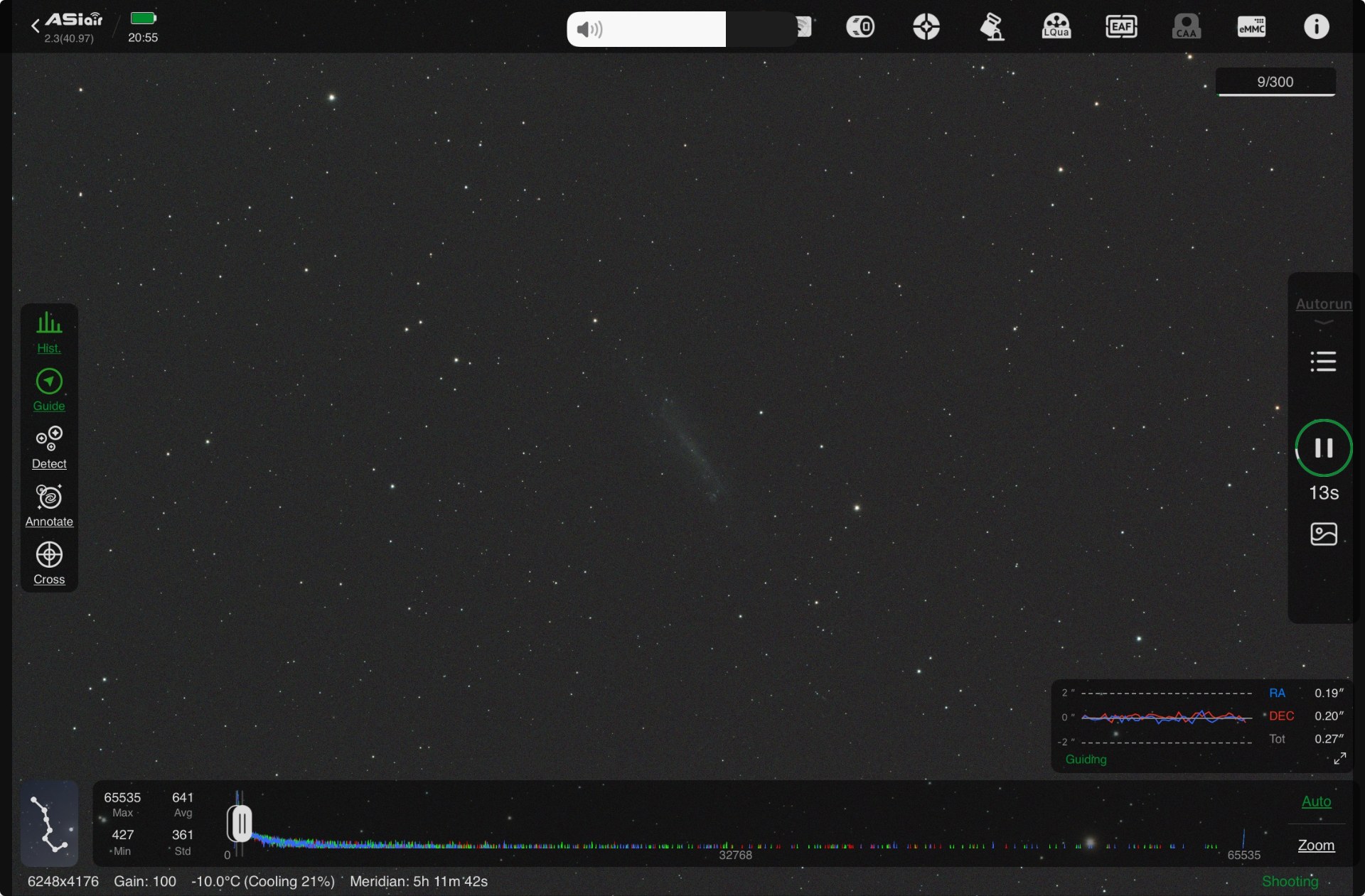

Due to its large size (over 20 arcminutes) and low surface brightness, NGC 4236 can be challenging to observe visually. A dark-sky site and at least a medium-sized telescope (20cm or more) are recommended to detect its elongated glow, especially using averted vision. Imaging through long exposures reveals far more detail, including the central bar and hints of structure in its disk. The best time to observe NGC 4236 is between April and July, when Draco is high in the evening sky, minimizing atmospheric distortion and light pollution.

References

1. Karachentsev, I. D., Sharina, M. E., Dolphin, A. E., et al. (2002). New distances to galaxies in the M81 Group. Astronomy & Astrophysics.
2. Kurtev, R., Georgiev, L., Borissova, J., & Tikhonov, N. (2001). Star Cluster Candidates in NGC 4236. Revista Mexicana de Astronomía y Astrofísica.
3. Martínez-Delgado, D., Romanowsky, A. J., Gabany, R. J., et al. (2012). The Ghosts of Galaxies Past: Uncovering Faint Stellar Structures in the Halos of Nearby Galaxies. Monthly Notices of the Royal Astronomical Society.
4. Makarov, D., Makarova, L., & Uklein, R. (2020). New Dwarf Galaxy Candidates in the Local Volume. arXiv preprint.
5. Shostak, G. S., & Rogstad, D. H. (1973). Aperture synthesis observations of neutral hydrogen in NGC 4236. Astronomy & Astrophysics.
6. Caldwell Catalog (NASA Hubble Site). Caldwell 3 – NGC 4236. NASA's Explore the Night Sky.
7. Freestarcharts.com. NGC 4236 – Barred spiral galaxy in Draco.
8. SIMBAD Astronomical Database. NGC 4236 entry. Centre de Données astronomiques de Strasbourg.
