M51: The Science Behind the Iconic Whirlpool Galaxy

M51, also known as the Whirlpool Galaxy, is one of the most iconic and scientifically studied spiral galaxies in the night sky. Located approximately 23 million light-years from Earth in the constellation Canes Venatici, M51 presents a stunning face-on view that beautifully reveals its structure and its dynamic interaction with a companion galaxy. This interaction has made M51 a cornerstone in the study of spiral galaxy morphology and dynamics.

Discovery and Classification

M51 was first observed by Charles Messier in 1773 while he was compiling his catalogue of comet-like objects. However, it wasn't until 1845 that Irish astronomer William Parsons, using his massive 72-inch reflecting telescope (the Leviathan of Parsonstown), identified its spiral structure. This marked the first time a spiral galaxy was recorded as such, representing a major turning point in our understanding of extragalactic astronomy.

M51 is also catalogued as NGC 5194, while its companion, NGC 5195, is a dwarf lenticular or irregular galaxy that interacts gravitationally with the larger M51. This striking pair is one of the most studied examples of an interacting galaxy system and has been extensively modelled in numerical simulations.

Structure and Composition

The Whirlpool Galaxy is a textbook example of a “grand-design” spiral galaxy, characterised by prominent, well-defined spiral arms extending from a bright central bulge. These arms are rich in dust, gas, and active star-forming regions, heavily influenced by gravitational perturbations from its companion galaxy. Their interaction has created a tidal bridge of stars and gas between the two galaxies and has compressed interstellar material in M51's disk, triggering waves of star formation.

Multi-wavelength observations, including those from the Herschel Space Observatory and the Atacama Large Millimeter/submillimeter Array (ALMA), reveal that M51 harbours significant amounts of cold molecular hydrogen, particularly concentrated along its spiral arms. Warmer molecular gas components have also been detected, likely heated by UV radiation from young stars and by mechanical shocks. These findings provide critical insights into the thermodynamics of the interstellar medium (ISM).

Dark dust lanes trace the arms and obscure portions of the inner galaxy in visible light. However, infrared observations penetrate the dust, unveiling the underlying stellar structure. Observations in ultraviolet and optical wavelengths highlight numerous OB associations and young stellar clusters embedded within the spiral arms.

Stellar Population

M51 is currently undergoing active star formation. Bright H II regions, clouds of ionised hydrogen, are scattered along its spiral arms, with a notable concentration near the interaction zones with NGC 5195. These regions are energised by ultraviolet radiation from newly formed massive stars. High-resolution imagery from the Hubble Space Telescope has resolved numerous star clusters, enabling astronomers to reconstruct the galaxy’s star formation history and observe evidence of propagating star formation.

As noted in a 2020 publication by researchers at the Instituto de Astrofísica de Canarias (IAC):
“The shape of the Whirlpool Galaxy has been moulded by the repeated passage through its disc by the satellite galaxy, triggering waves of star formation.”  These passages are believed to have occurred multiple times, with the most recent interaction taking place around 100 million years ago. This supports the broader understanding that galactic interactions are a major driver of starburst activity and morphological transformation in disc galaxies.

X-Ray Emission, Black Holes and Compact Objects

M51 is also a rich source of X-ray emission. Observations from the Chandra X-ray Observatory have identified over 100 discrete point sources within the galaxy, most of which are interpreted as X-ray binaries—systems in which a neutron star or black hole accretes material from a companion star. These objects, which trace older stellar populations, are particularly concentrated in the bulge and along the spiral arms.

In addition, M51 hosts a low-luminosity active galactic nucleus (AGN). X-ray spectral data reveal a hard X-ray component, consistent with the presence of a central supermassive black hole estimated to have a mass of around one million solar masses. While relatively quiet compared to quasars, this black hole still contributes to the ionisation and heating of surrounding gas in the galaxy’s core.

Magnetic Field Structure

Observations in radio and submillimetre wavelengths have revealed the intricate magnetic field structure of M51. Studies indicate that magnetic field lines are generally aligned with the spiral arms, though distortions and tangling are observed in the outer disc and in regions of intense star formation. A 2020 analysis using the SOFIA airborne observatory highlighted the role of magnetic fields in regulating gas inflow and the collapse of molecular clouds, suggesting a key influence on star formation processes.

Kinematic studies of neutral hydrogen (H I) and carbon monoxide (CO) have uncovered non-circular gas motions, supporting the presence of spiral density waves. These findings imply that the spiral arms are not static material features, but rather wave patterns propagating through the disc, compressing gas and triggering star formation as they pass. This interpretation is further reinforced by observed velocity gradients across the arms.

Supernova Events

M51 has been the site of several observed supernova explosions. Among them, SN 2005cs was a Type II-P supernova with relatively low luminosity, indicative of a lower-mass progenitor star. In contrast, SN 2011dh—a Type IIb supernova—originated from the collapse of a yellow supergiant. It became one of the most thoroughly studied events of its kind, with pre-explosion imaging and extensive multi-wavelength follow-up observations.

Such events are crucial for refining models of stellar evolution, particularly the final stages of massive stars and the mechanisms behind core-collapse supernovae. The chemical elements expelled during these explosions enrich the interstellar medium, seeding the raw materials for future generations of stars and planetary systems.

Scientific Relevance

The Whirlpool Galaxy stands as a vital reference point in astrophysics and serves as a benchmark for simulations of galactic interactions, AGN feedback, magnetic field evolution, and the modelling of a multi-phase interstellar medium.

As noted in a 2021 article published in The Astrophysical Journal: “M51 remains one of the most important reference galaxies for testing theories of galactic structure and evolution.” Numerical simulations predict that NGC 5195 will continue orbiting M51, with orbital decay ultimately leading to a full merger in a few hundred million years. This final interaction will likely disrupt the disc structure and transform the system into a more elliptical morphology—contributing to the broader cosmic cycle of galaxy evolution.

Observing M51

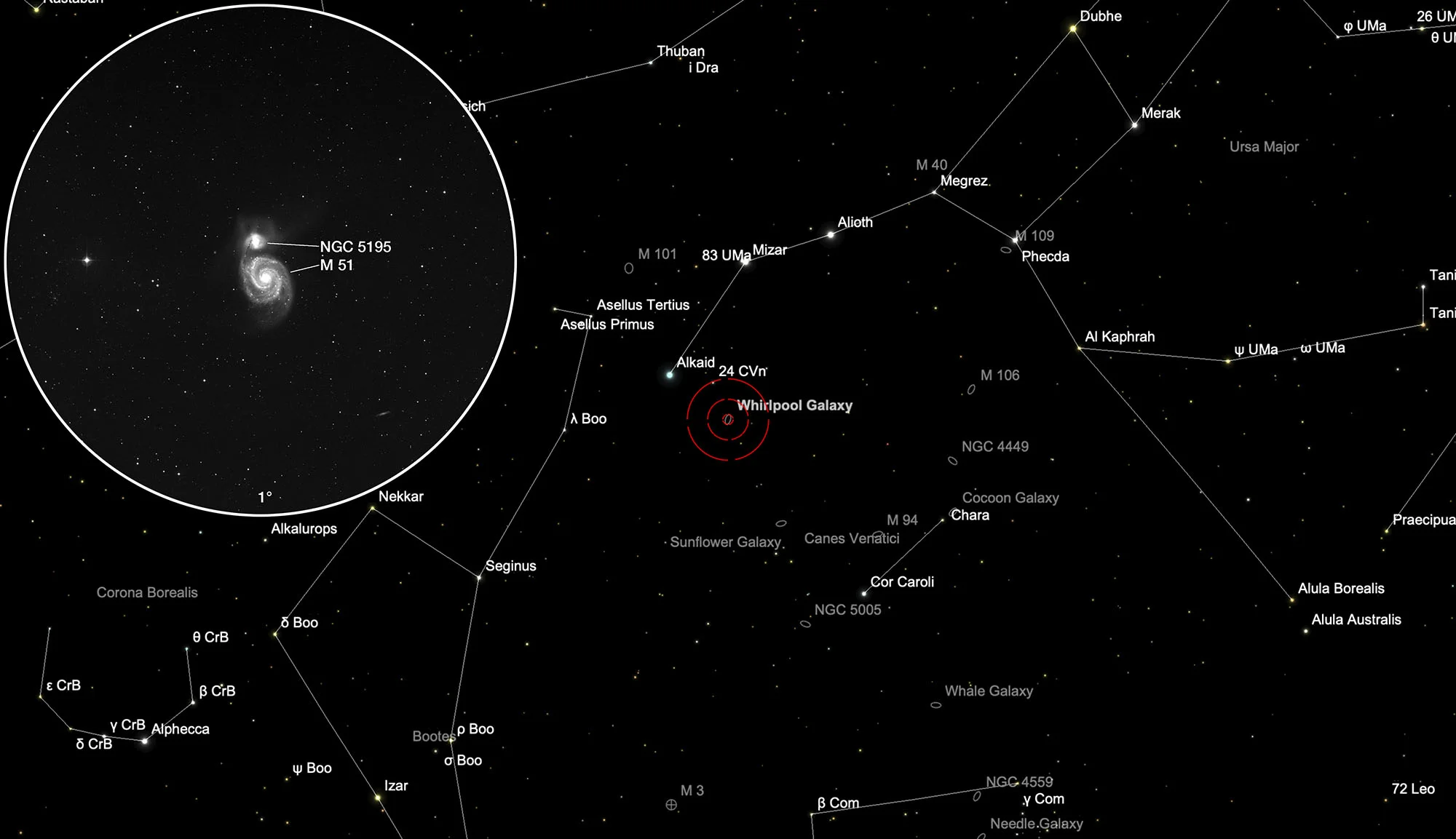

Messier 51 is located in the constellation Canes Venatici, just south of the tail of Ursa Major. To find it, use the Big Dipper asterism as a guide. Start from the star Alkaid at the end of the Dipper’s handle and move a few degrees southeast. In dark skies, M51 is faintly visible through binoculars and becomes spectacular in telescopes of 6 inches or larger.

It is best observed during the spring months (March to May) in the Northern Hemisphere, when it is well-positioned in the evening sky. Observations during new moon periods and from dark-sky sites yield the best visual and imaging results. As emphasized by NASA’s Hubble Science Team: “The Whirlpool Galaxy’s proximity, face-on orientation, and interaction with NGC 5195 make it a Rosetta Stone for understanding spiral galaxy evolution.”

Reference List

1. IAC (Instituto de Astrofísica de Canarias). (2020). The shape of the Whirlpool Galaxy has been molded by repeated passages through its disc by its satellite galaxy.
2. NASA Hubble Science Team. (n.d.). Messier 51 (The Whirlpool Galaxy).
3. Earnshaw, H. P., et al. (2021). Chandra X-ray Survey of the Whirlpool Galaxy. The Astrophysical Journal, arXiv:2109.02742.
4. USRA / SOFIA. (2020). Magnetic Chaos Hidden Within the Whirlpool Galaxy.
5. Parkin, T. J., et al. (2017). Warm and Cold Molecular Gas in M51. The Astrophysical Journal, arXiv:1707.01973.
6. The Astrophysical Journal. (2021). M51 as a Reference for Galactic Evolution Models.
7. NASA Hubble Site. (n.d.). SN 2011dh in M51.
8. Tilanus, R. P. J., & Allen, R. J. (1991). Spiral density waves in M51: CO observations and theory. Astronomy and Astrophysics, 244, 8–20.
